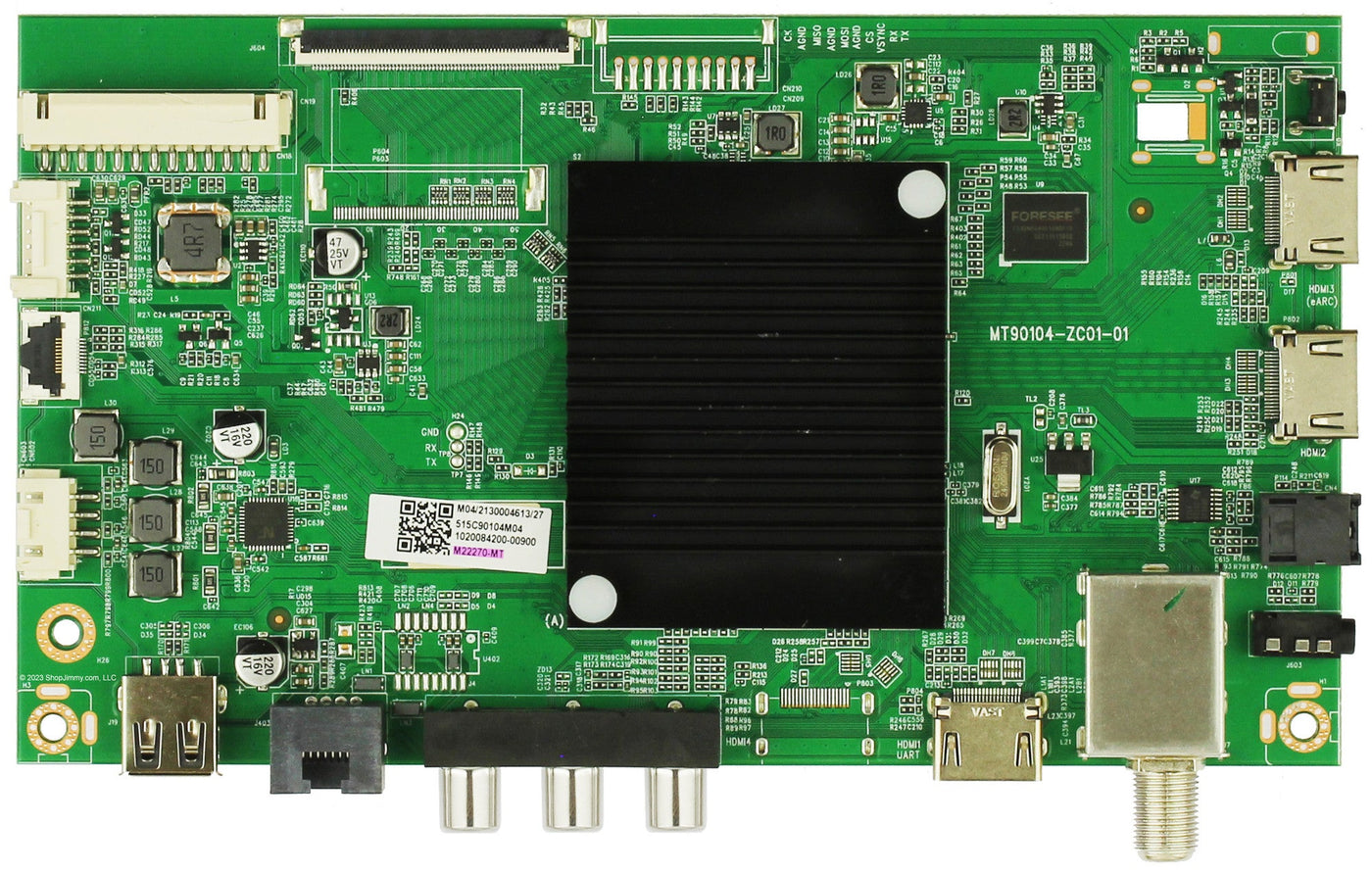

ONN M22270-MT 515C90104M04 Main Board for 100012587

SKU: M22270-MT

$26.06 $28.96 -10%

0 Down with Affirm. As low as $2.17/mo.

✓ Free shipping nationwide
✓ 0 Down with Affirm
✓ 30-day returns
✓ US-based support: (818) 213-6772

Description

ONN M22270-MT / 515C90104M04 Main Board

Location: 00o5

Replace the faulty main board in your ONN TV model 100012587 with this high-quality, tested M22270-MT / 515C90104M04 board. This board handles the core logic functions that control video, input selection, firmware, and more.

Part & Board Numbers

Part Number: M22270-MT
Board / Printed Numbers:
- 515C90104M04
- M22270-MT
- MT90104-ZC01-01 (variant)

Please ensure the number on your original board matches one of the listed part or board numbers above. Matching by TV model number only may not guarantee compatibility. :contentReference[oaicite:1]{index=1}

Compatible TV Model

Known compatible model:

ONN 100012587 :contentReference[oaicite:2]{index=2}

Common Failure Symptoms

TV powers on but shows no image or a very dim screen
No input detection (HDMI, etc) even when sources are correctly connected
TV stuck on logo, freezes during boot, or keeps rebooting
Board/backlight turning on momentarily then shutting off

Note: These symptoms may also arise from other components. Proper diagnosis is recommended.

Installation Notes

Unplug the TV and wait several minutes before opening it.
Use anti-static precautions when handling boards.
Ensure all ribbon cables and connectors are fully seated and locked.
Avoid bending or crimping the board during installation.

Condition & Testing

Professionally inspected and tested for proper functionality.
Guaranteed working replacement for the part numbers listed.

Warranty & Returns

Warranty: 180-Day Warranty from our facility in Brighton, TN.
Returns accepted only if board is unmodified, undamaged, and properly installed.
Please retain your original board until the repair is confirmed successful.
