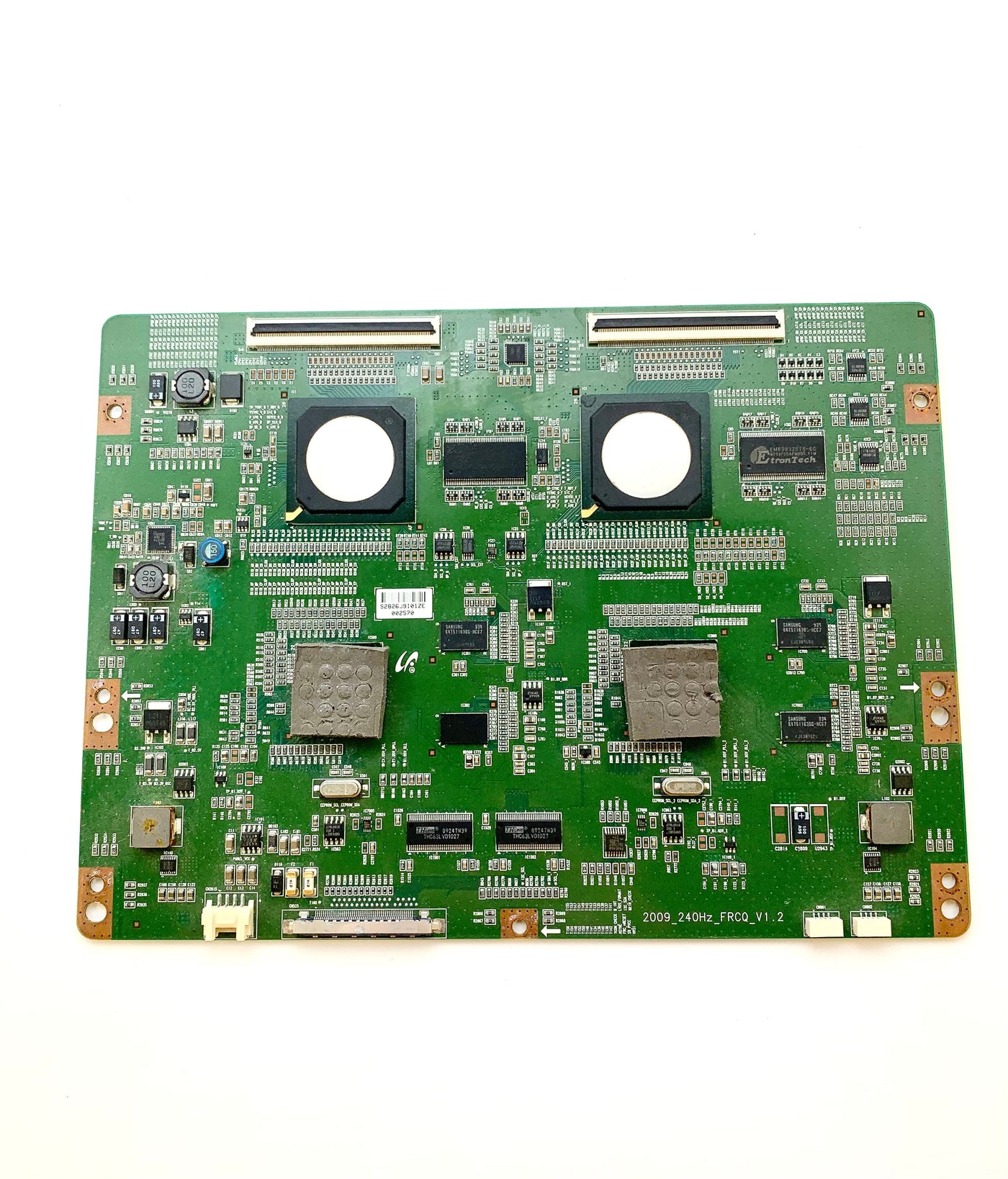

Samsung BN81-02361A T-Con Board for UN46B8000XFXZA
- ✓ Free shipping nationwide
- ✓ 0 Down with Affirm
- ✓ 30-day returns
- ✓ US-based support: (818) 213-6772
Description
Part Type: T-Con Board, LCD Controller, Control Board, CTRL Board, Timing Control
Part Number: BN81-02361A
Location: 00D1
Additional Board Numbers: 2009_240Hz_FRCQ_V1.2, S2808G
Interchangeable Parts: LJ94-02671F
LJ94-02772F
LJ94-02826K
BN81-02356A
LJ94-02671H
LJ94-02869C
LJ94-02992F
LJ94-02869B
BN81-03157A
LJ94-02772E
LJ94-02869A
LJ94-02826J
LJ94-02808J
BN81-02444A
LJ94-02826H
LJ94-02826G
Notice: Recommended to order by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels. LJ94-02808G Partial part number (2808G) can be found on the sticker.
Compatible TV Models: Samsung
UN46B8000XFXSR 0001 UN46B8000XFXSR SQ01 UN46B8000XFXZA UN46B8000XFXZL 0001 UN46B8000XFXZP 0001 UN46B8000XFXZP SQ01 UN46B8000XFXZX 0001 UN46B8000XFXZX SQ01
