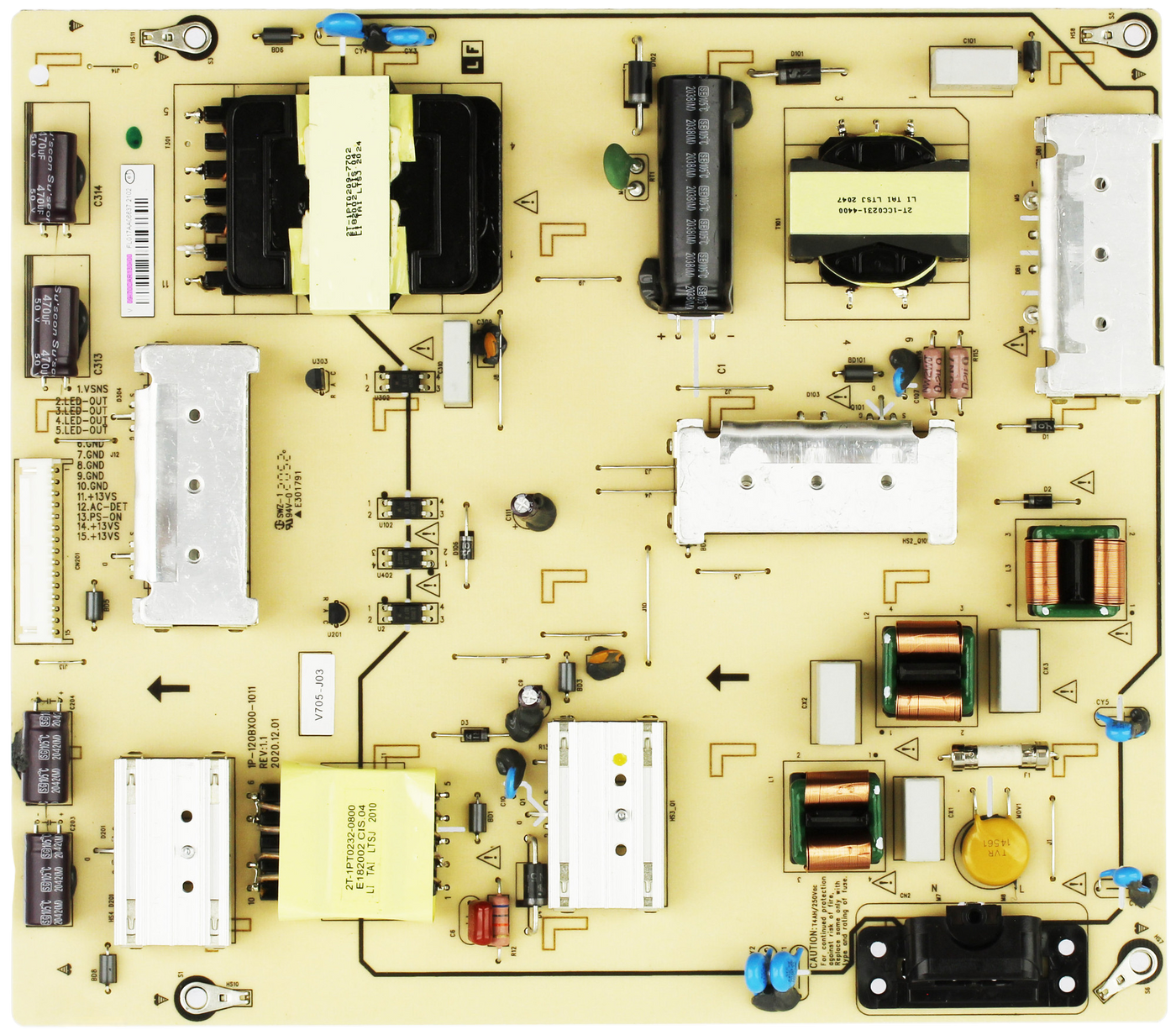

Vizio 09-70CAR130-00 Power Supply LED Board

Vizio 09-70CAR130-00 Power Supply / LED Board

Location: 00i5

This replacement power supply / LED driver board is designed for Vizio sets that use part number 09-70CAR130-00. It regulates the power supply and controls the LED backlight — essential for proper picture and screen brightness. A faulty board can cause a dark screen, no backlight, flickering, or no picture despite the TV powering on.

Part & Board Numbers

• Part Number: 09-70CAR130-00
• Board / Printed Numbers (as labeled on the unit):
  • 09-70CAR130-00
  • LED Power Board / PSU Board

Always verify the part number on your existing board before ordering. Matching the TV model alone may not guarantee compatibility.

Compatible Use Cases

• Replacement for Vizio TVs requiring board 09-70CAR130-00
• For sets that power on but have no backlight or picture (common LED-board failure symptoms)

Common Symptoms of a Bad Power Supply / LED Board

• No picture or blank screen while the TV powers on
• Backlight does not activate or LED strips remain dark
• Flickering or intermittent backlight / brightness issues
• No video despite proper HDMI or input signal, possibly with sound or standby lights active

Installation & Handling Notes

• Unplug the TV and let capacitors fully discharge before servicing.
• Use anti-static (ESD) precautions when handling electronic boards.
• Ensure all connectors and ribbon cables are fully seated and aligned correctly.
• Avoid forcing connectors or bending the board during installation.

Condition & Testing

• Professionally inspected and tested for correct functionality.
• Guaranteed working replacement for the part number listed above.

Warranty & Returns

• Warranty: 180-Day Warranty.
• Returns accepted if board is unmodified, undamaged, and installed properly.
• Please retain your original board until repair is confirmed successful.

Shipping

• Ships from Brighton, TN.
• Secure packaging to protect the board during transit.
• Expedited shipping options available at checkout.

If you’re unsure whether this is the correct board for your TV — or want help verifying compatibility — please contact us before ordering. We’re happy to assist you to ensure you get the correct part.
